CXT-PLA3SA12450AA

In Stock: 1

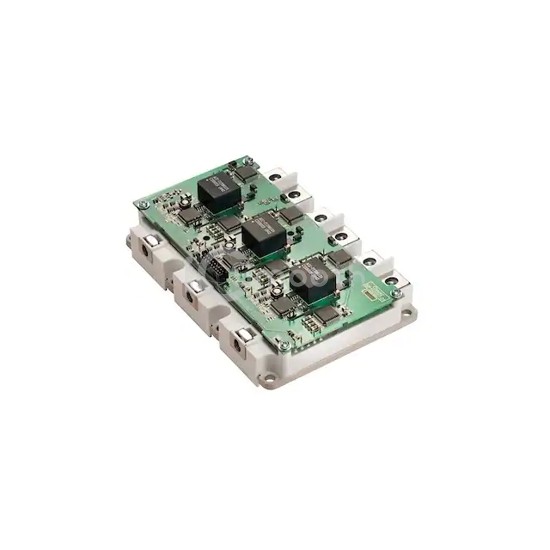

CXT-PLA3SA12450AA - CISSOID - Transistors - FETs, MOSFETs - Arrays
REF: CXT-PLA3SA12450AA CISSOID
CXT-PLA3SA12450AA

CISSOID

MOS POWER MODULE 1200V/450A SIC

CXT-PLA3SA12450AA is a Transistors - FETs, MOSFETs - Arrays manufactured by CISSOID. MOS POWER MODULE 1200V/450A SIC. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 1

Specifications

14 parameters
Product StatusActive
FET Type6 N-Channel (3-Phase Bridge)
FET FeatureSilicon Carbide (SiC)
Drain to Source Voltage (Vdss)1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C450A
Rds On (Max) @ Id, Vgs3.25mOhm @ 300A
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs295nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds30nF @ 600V
Power - Max-
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
