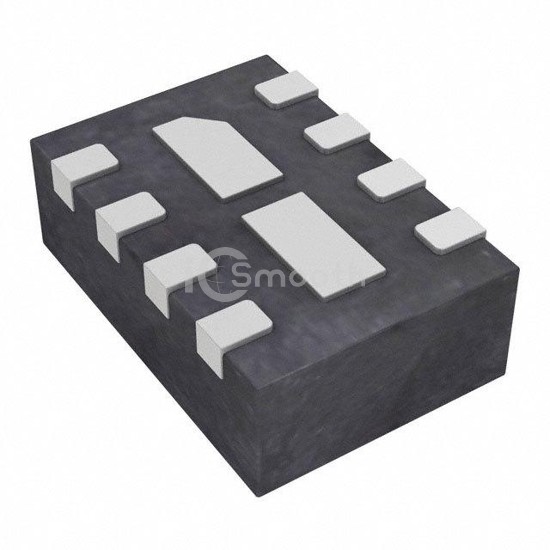

Name: CTLDM303N-M832DS TR
Brand: Central Semiconductor Corp
SKU: CTLDM303N-M832DS TR
Availability: InStock

REF: CTLDM303N-M832DS TR Central Semiconductor Corp

CTLDM303N-M832DS TR

Central Semiconductor Corp

MOSFET 2N-CH 30V 3.6A TLM832DS

CTLDM303N-M832DS TR is a Transistors - FETs, MOSFETs - Arrays manufactured by Central Semiconductor Corp. MOSFET 2N-CH 30V 3.6A TLM832DS. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-TDFN Exposed Pad, power - max 1.65W.

Datasheet Request a Quote

In Stock: 3,309

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	3.6A
Rds On (Max) @ Id, Vgs	40mOhm @ 1.8A, 4.5V
Vgs(th) (Max) @ Id	1.2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	13nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	590pF @ 10V
Power - Max	1.65W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-TDFN Exposed Pad
Supplier Device Package	TLM832DS
