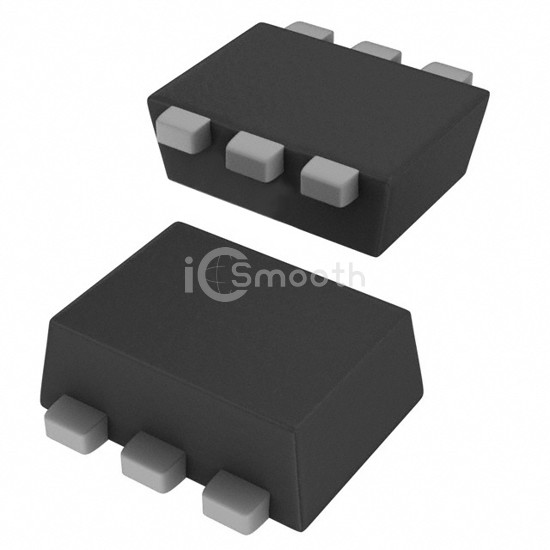

Name: CMRDM3575 TR PBFREE
Brand: Central Semiconductor Corp
SKU: CMRDM3575 TR PBFREE
Price: 0.45 USD
Availability: InStock

REF: CMRDM3575 TR PBFREE Central Semiconductor Corp

CMRDM3575 TR PBFREE

Central Semiconductor Corp

MOSFET N/P-CH 20V SOT963

CMRDM3575 TR PBFREE is a Transistors - FETs, MOSFETs - Arrays manufactured by Central Semiconductor Corp. MOSFET N/P-CH 20V SOT963. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case SOT-963, power - max 125mW.

Datasheet Request a Quote

In Stock: 1,434

Specifications

14 parameters

Product Status	Active
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	160mA, 140mA
Rds On (Max) @ Id, Vgs	3Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	0.46nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	9pF @ 15V
Power - Max	125mW
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-963
Supplier Device Package	SOT-963
