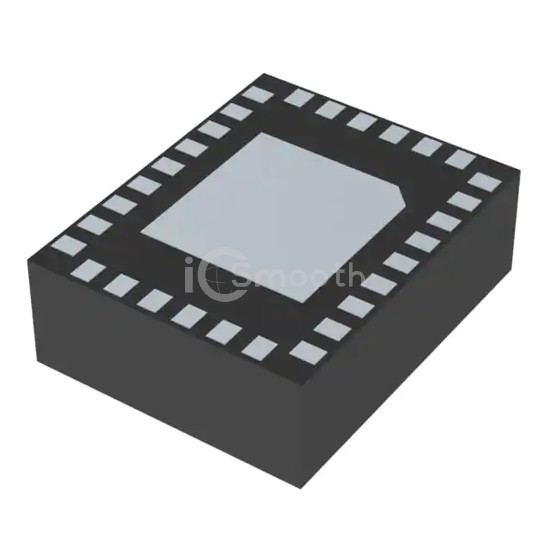

Name: ADGS1414DBCCZ-RL7
Brand: Analog Devices Inc.
SKU: ADGS1414DBCCZ-RL7
Price: 28.25 USD
Availability: InStock

REF: ADGS1414DBCCZ-RL7 Analog Devices Inc.

ADGS1414DBCCZ-RL7

Analog Devices Inc.

FULLY INTEGRATED, 1.5 ? RON, 15

ADGS1414DBCCZ-RL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. FULLY INTEGRATED, 1.5 ? RON, 15. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 30-FLGA Exposed Pad, number of circuits 8.

Datasheet Request a Quote

In Stock: 1,614

Tiered Pricing USD

1+ $28.2500 —

10+ $20.5190 -27%

25+ $18.5044 -34%

100+ $17.9000 -37% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	8
On-State Resistance (Max)	1.8Ohm
Channel-to-Channel Matching (ΔRon)	300mOhm
Voltage - Supply, Single (V+)	5V ~ 20V, ±4.5V ~ 16.5V
Voltage - Supply, Dual (V±)	5V ~ 20V, ±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)	475ns, 190ns

-3db Bandwidth	170MHz
Charge Injection	-20pC
Channel Capacitance (CS(off), CD(off))	20pF, 21pF
Current - Leakage (IS(off)) (Max)	30pA
Crosstalk	-75dB @ 1MHz
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	30-FLGA Exposed Pad
Supplier Device Package	30-LGA (4x5)
