Name: ADG1419BCPZ-REEL7
Brand: Analog Devices Inc.
SKU: ADG1419BCPZ-REEL7
Price: 6.29 USD
Availability: InStock

REF: ADG1419BCPZ-REEL7 Analog Devices Inc.

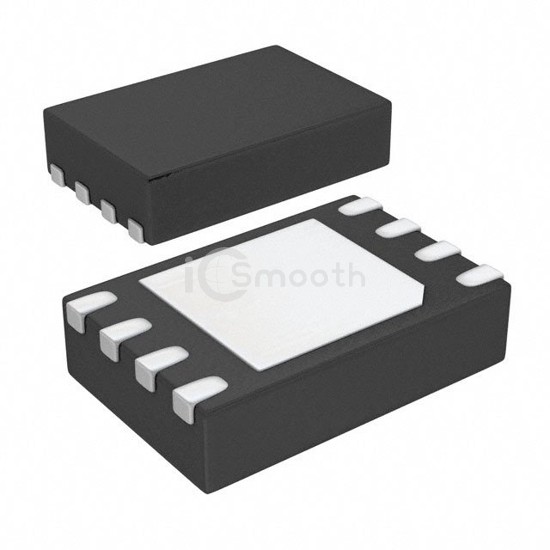

ADG1419BCPZ-REEL7

Analog Devices Inc.

IC SWITCH SPDT 4.6OHM 8LFCSP

ADG1419BCPZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH SPDT 4.6OHM 8LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 8-WFDFN Exposed Pad, CSP, number of circuits 1.

Datasheet Request a Quote

In Stock: 12

Tiered Pricing USD

1+ $6.2900 —

10+ $4.1490 -34%

25+ $3.5916 -43%

100+ $2.9615 -53%

250+ $2.6522 -58%

500+ $2.4619 -61%

1,000+ $2.4375 -61% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	2.4Ohm
Channel-to-Channel Matching (ΔRon)	50mOhm
Voltage - Supply, Single (V+)	5V ~ 16.5V
Voltage - Supply, Dual (V±)	±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)	110ns, 140ns

-3db Bandwidth	135MHz
Charge Injection	-16pC
Channel Capacitance (CS(off), CD(off))	19pF, 44pF
Current - Leakage (IS(off)) (Max)	500pA
Crosstalk	-64dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad, CSP
Supplier Device Package	8-LFCSP-WD (2x3)
