Name: NLAS3899BMNTBG
Brand: onsemi
SKU: NLAS3899BMNTBG
Price: 1.25 USD
Availability: InStock

REF: NLAS3899BMNTBG onsemi

NLAS3899BMNTBG

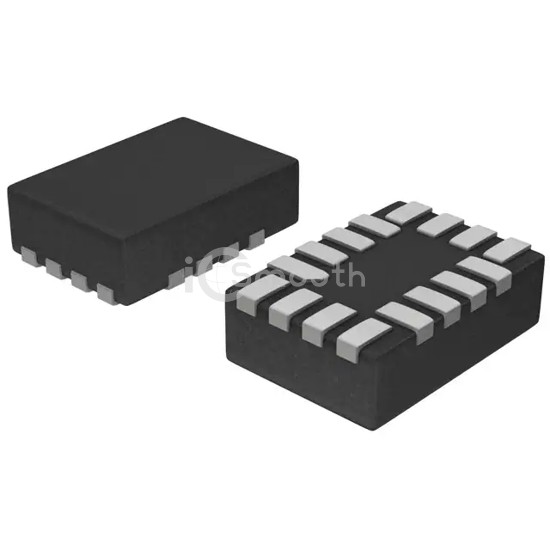

IC SWITCH DUAL DPDT 16WQFN

NLAS3899BMNTBG is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL DPDT 16WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 881,121

Specifications

18 parameters

Product Status	Active
Switch Circuit	DPDT
Multiplexer/Demultiplexer Circuit	2:2
Number of Circuits	2
On-State Resistance (Max)	2.5Ohm
Channel-to-Channel Matching (ΔRon)	700mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	40ns, 30ns

-3db Bandwidth	280MHz
Charge Injection	111pC
Channel Capacitance (CS(off), CD(off))	10pF
Current - Leakage (IS(off)) (Max)	300nA
Crosstalk	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WFQFN
Supplier Device Package	16-WQFN (1.8x2.6)
