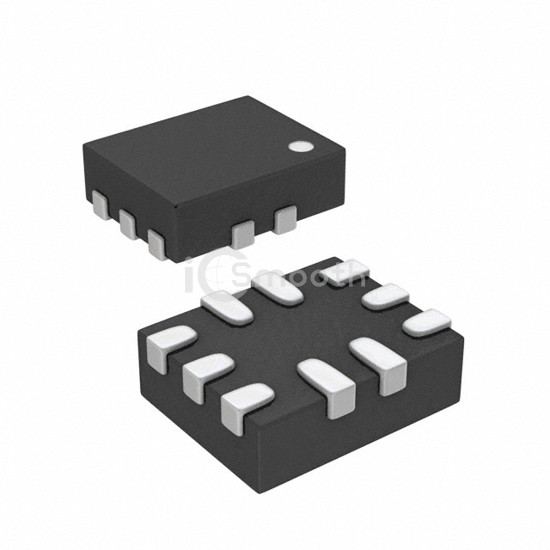

Name: ADG772BCPZ-REEL7
Brand: Analog Devices Inc.
SKU: ADG772BCPZ-REEL7
Price: 3.96 USD
Availability: InStock

REF: ADG772BCPZ-REEL7 Analog Devices Inc.

ADG772BCPZ-REEL7

Analog Devices Inc.

IC MUX/DEMUX 2X1 10LFCSP

ADG772BCPZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MUX/DEMUX 2X1 10LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, CSP, number of circuits 2.

Datasheet Request a Quote

In Stock: 9,251

Tiered Pricing USD

1+ $3.9600 —

10+ $2.5500 -36%

25+ $2.1808 -45%

100+ $1.7635 -55%

250+ $1.5585 -61%

500+ $1.4324 -64%

1,000+ $1.3268 -66% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	6.7Ohm (Typ)
Channel-to-Channel Matching (ΔRon)	40mOhm
Voltage - Supply, Single (V+)	2.7V ~ 3.6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	12.5ns, 9.5ns

-3db Bandwidth	630MHz
Charge Injection	0.5pC
Channel Capacitance (CS(off), CD(off))	2.4pF, 6.9pF
Current - Leakage (IS(off)) (Max)	200pA
Crosstalk	-90dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN, CSP
Supplier Device Package	10-LFCSP-UQ (1.6x1.3)
