Name: ADG884BCBZ-REEL7
Brand: Analog Devices Inc.
SKU: ADG884BCBZ-REEL7
Price: 4.63 USD
Availability: InStock

REF: ADG884BCBZ-REEL7 Analog Devices Inc.

ADG884BCBZ-REEL7

Analog Devices Inc.

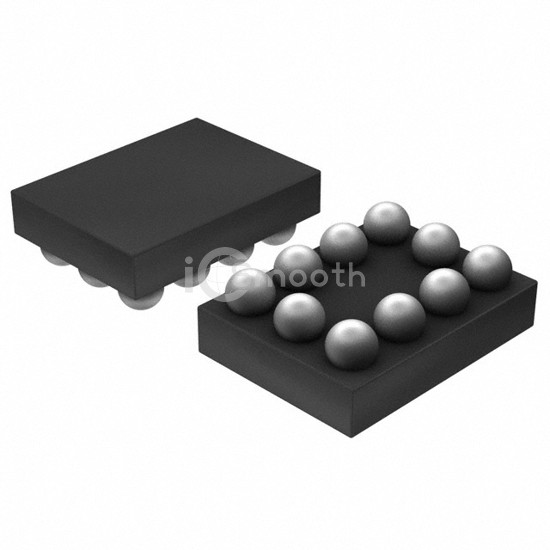

IC SWITCH DUAL SPDT 10WLCSP

ADG884BCBZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH DUAL SPDT 10WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFBGA, WLCSP, number of circuits 2.

Datasheet Request a Quote

In Stock: 2,975

Tiered Pricing USD

1+ $4.6300 —

10+ $3.0060 -35%

25+ $2.5812 -44%

100+ $2.1008 -55%

250+ $1.8650 -60%

500+ $1.7200 -63%

1,000+ $1.6000 -65% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	370mOhm
Channel-to-Channel Matching (ΔRon)	10mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	50ns, 20ns

-3db Bandwidth	18MHz
Charge Injection	125pC
Channel Capacitance (CS(off), CD(off))	103pF
Current - Leakage (IS(off)) (Max)	200pA (Typ)
Crosstalk	-120dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFBGA, WLCSP
Supplier Device Package	10-WLCSP (2x1.5)
