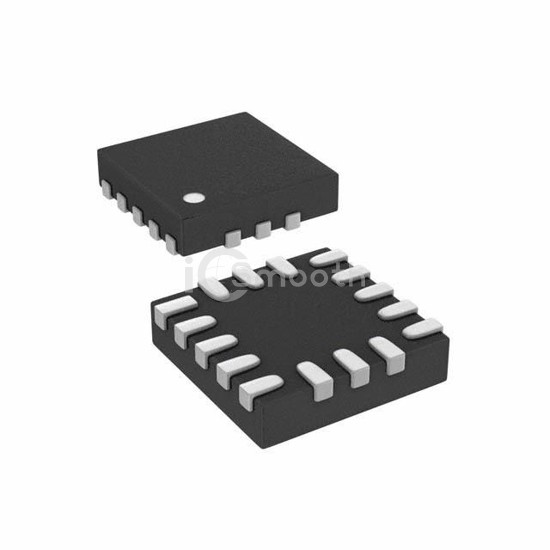

Name: ADG858BCPZ-REEL
Brand: Analog Devices Inc.
SKU: ADG858BCPZ-REEL
Price: 1.59 USD
Availability: InStock

REF: ADG858BCPZ-REEL Analog Devices Inc.

ADG858BCPZ-REEL

Analog Devices Inc.

IC SWITCH QUAD SPDT 16LFCSP

ADG858BCPZ-REEL is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH QUAD SPDT 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-UFQFN, CSP, number of circuits 2.

Datasheet Request a Quote

In Stock: 9,636

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:2
Number of Circuits	2
On-State Resistance (Max)	720mOhm
Channel-to-Channel Matching (ΔRon)	40mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	27ns, 12ns

-3db Bandwidth	70MHz
Charge Injection	45pC
Channel Capacitance (CS(off), CD(off))	25pF
Current - Leakage (IS(off)) (Max)	10pA (Typ)
Crosstalk	-85dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-UFQFN, CSP
Supplier Device Package	16-LFCSP-UQ (2.1x2.1)
