Name: ADG854BCPZ-REEL7
Brand: Analog Devices Inc.
SKU: ADG854BCPZ-REEL7
Price: 4.32 USD
Availability: InStock

REF: ADG854BCPZ-REEL7 Analog Devices Inc.

ADG854BCPZ-REEL7

Analog Devices Inc.

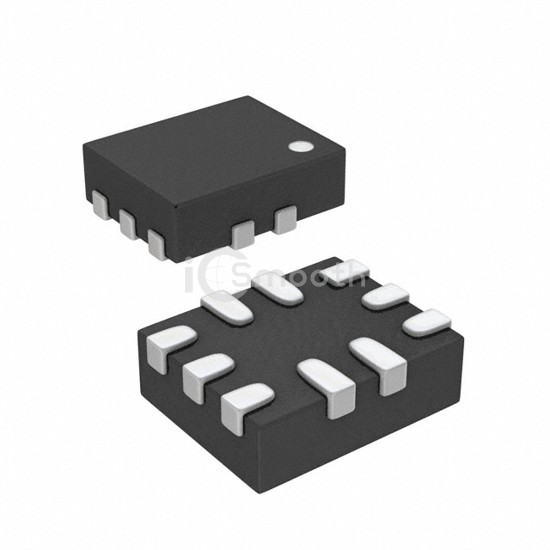

IC SWITCH DUAL SPDT 10LFCSP

ADG854BCPZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH DUAL SPDT 10LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, CSP, number of circuits 2.

Datasheet Request a Quote

In Stock: 1,525

Tiered Pricing USD

1+ $4.3200 —

10+ $2.7900 -35%

25+ $2.3912 -45%

100+ $1.9403 -55%

250+ $1.7190 -60%

500+ $1.5829 -63%

1,000+ $1.4688 -66% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	850mOhm
Channel-to-Channel Matching (ΔRon)	20mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	23ns, 8.5ns

-3db Bandwidth	100MHz
Charge Injection	30pC
Channel Capacitance (CS(off), CD(off))	19.5pF
Current - Leakage (IS(off)) (Max)	10pA (Typ)
Crosstalk	-85dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN, CSP
Supplier Device Package	10-LFCSP-UQ (1.6x1.3)
