Name: ADG854BCPZ-REEL
Brand: Analog Devices Inc.
SKU: ADG854BCPZ-REEL
Price: 1.14 USD
Availability: InStock

REF: ADG854BCPZ-REEL Analog Devices Inc.

ADG854BCPZ-REEL

Analog Devices Inc.

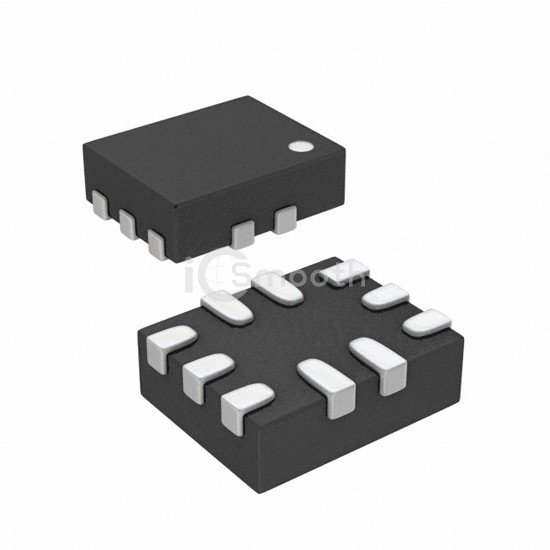

IC SWITCH DUAL SPDT 10LFCSP

ADG854BCPZ-REEL is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH DUAL SPDT 10LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, CSP, number of circuits 2.

Datasheet Request a Quote

In Stock: 6,045

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	850mOhm
Channel-to-Channel Matching (ΔRon)	20mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	23ns, 8.5ns

-3db Bandwidth	100MHz
Charge Injection	30pC
Channel Capacitance (CS(off), CD(off))	19.5pF
Current - Leakage (IS(off)) (Max)	10pA (Typ)
Crosstalk	-85dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN, CSP
Supplier Device Package	10-LFCSP-UQ (1.6x1.3)
