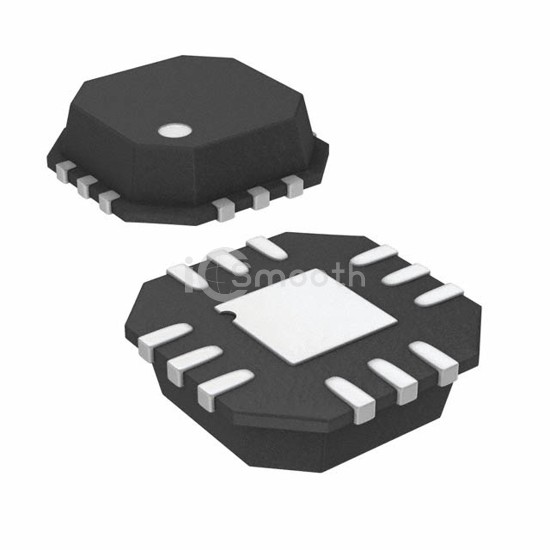

Name: ADG836YCPZ-REEL7
Brand: Analog Devices Inc.
SKU: ADG836YCPZ-REEL7
Price: 5.57 USD
Availability: InStock

REF: ADG836YCPZ-REEL7 Analog Devices Inc.

ADG836YCPZ-REEL7

Analog Devices Inc.

IC SWITCH DUAL SPDT 12LFCSP

ADG836YCPZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH DUAL SPDT 12LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 12-VFQFN Exposed Pad, CSP, number of circuits 2.

Datasheet Request a Quote

In Stock: 4,307

Tiered Pricing USD

1+ $5.5700 —

10+ $3.6480 -35%

25+ $3.1480 -43%

100+ $2.5825 -54%

250+ $2.3048 -59%

500+ $2.1339 -62% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	650mOhm
Channel-to-Channel Matching (ΔRon)	40mOhm
Voltage - Supply, Single (V+)	1.65V ~ 3.6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	26ns, 7ns

-3db Bandwidth	57MHz
Charge Injection	40pC
Channel Capacitance (CS(off), CD(off))	25pF
Current - Leakage (IS(off)) (Max)	200pA (Typ)
Crosstalk	-90dB @ 100kHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	12-VFQFN Exposed Pad, CSP
Supplier Device Package	12-LFCSP-VQ (3x3)
