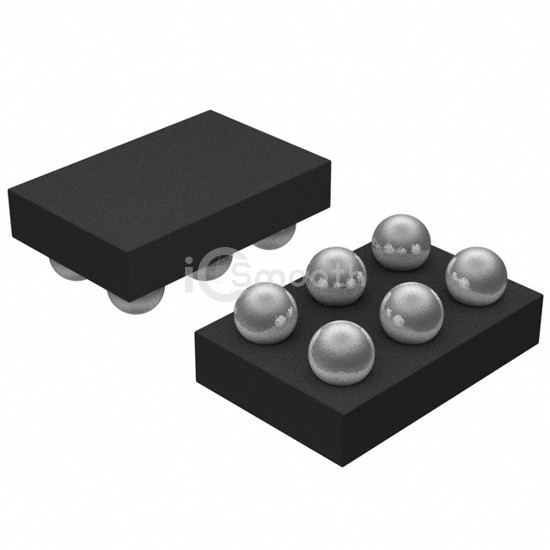

Name: ADG819BCBZ-REEL7
Brand: Analog Devices Inc.
SKU: ADG819BCBZ-REEL7
Price: 4.79 USD
Availability: InStock

REF: ADG819BCBZ-REEL7 Analog Devices Inc.

ADG819BCBZ-REEL7

Analog Devices Inc.

IC SWITCH SPDT 6WLCSP

ADG819BCBZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH SPDT 6WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-WFBGA, WLCSP, number of circuits 1.

Datasheet Request a Quote

In Stock: 6,331

Tiered Pricing USD

1+ $4.7900 —

10+ $3.1120 -35%

25+ $2.6748 -44%

100+ $2.1802 -54%

250+ $1.9374 -60%

500+ $1.7879 -63%

1,000+ $1.6750 -65% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	600mOhm
Channel-to-Channel Matching (ΔRon)	60mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	45ns, 16ns

-3db Bandwidth	17MHz
Charge Injection	20pC
Channel Capacitance (CS(off), CD(off))	80pF
Current - Leakage (IS(off)) (Max)	250pA
Crosstalk	-72dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-WFBGA, WLCSP
Supplier Device Package	6-WLCSP (1.14x2.18)
