Name: ADG811YCPZ-REEL7
Brand: Analog Devices Inc.
SKU: ADG811YCPZ-REEL7
Price: 6.68 USD
Availability: InStock

REF: ADG811YCPZ-REEL7 Analog Devices Inc.

ADG811YCPZ-REEL7

Analog Devices Inc.

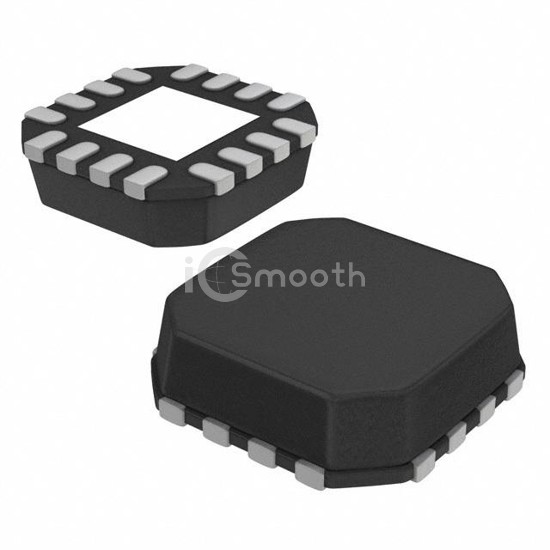

IC SWITCH QUAD SPST 16LFCSP

ADG811YCPZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH QUAD SPST 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-VFQFN Exposed Pad, CSP, number of circuits 4.

Datasheet Request a Quote

In Stock: 11,610

Tiered Pricing USD

1+ $6.6800 —

10+ $4.4250 -34%

25+ $3.8376 -43%

100+ $3.1725 -53%

250+ $2.8461 -57%

500+ $2.6500 -60% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	650mOhm
Channel-to-Channel Matching (ΔRon)	40mOhm
Voltage - Supply, Single (V+)	1.65V ~ 3.6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	25ns, 5ns

-3db Bandwidth	90MHz
Charge Injection	30pC
Channel Capacitance (CS(off), CD(off))	30pF, 35pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-90dB @ 100kHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-VFQFN Exposed Pad, CSP
Supplier Device Package	16-LFCSP-VQ (3x3)
