Name: ADG798HFRZ
Brand: Analog Devices Inc.
SKU: ADG798HFRZ
Price: 156.93 USD
Availability: InStock

REF: ADG798HFRZ Analog Devices Inc.

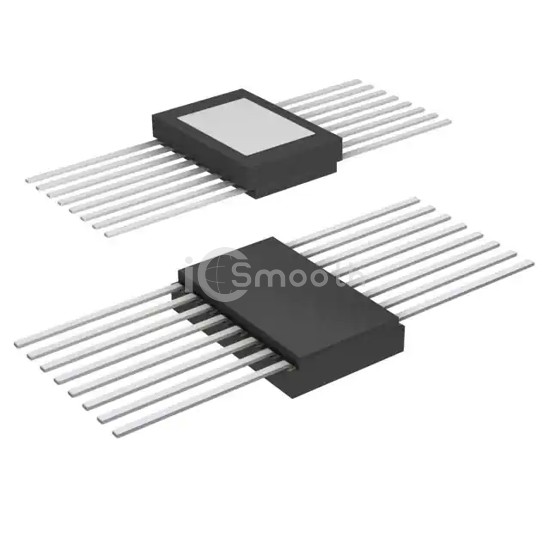

ADG798HFRZ

IC MUX/DEMUX 8:1 16FLATPACK

ADG798HFRZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MUX/DEMUX 8:1 16FLATPACK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 210°C (TA), package / case 16-CFlatPack, number of circuits 1.

Datasheet Request a Quote

In Stock: 40

Tiered Pricing USD

1+ $156.9300 —

12+ $147.1250 -6% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	8:1
Number of Circuits	1
On-State Resistance (Max)	10Ohm
Channel-to-Channel Matching (ΔRon)	1.25Ohm
Voltage - Supply, Single (V+)	3V ~ 5.5V
Voltage - Supply, Dual (V±)	±2.5V
Switch Time (Ton, Toff) (Max)	30ns, 20ns

-3db Bandwidth	55MHz
Charge Injection	3pC
Channel Capacitance (CS(off), CD(off))	13pF, 85pF
Current - Leakage (IS(off)) (Max)	180nA
Crosstalk	-60dB @ 10MHz
Operating Temperature	-55°C ~ 210°C (TA)
Mounting Type	Surface Mount
Package / Case	16-CFlatPack
Supplier Device Package	16-CFlatPack
