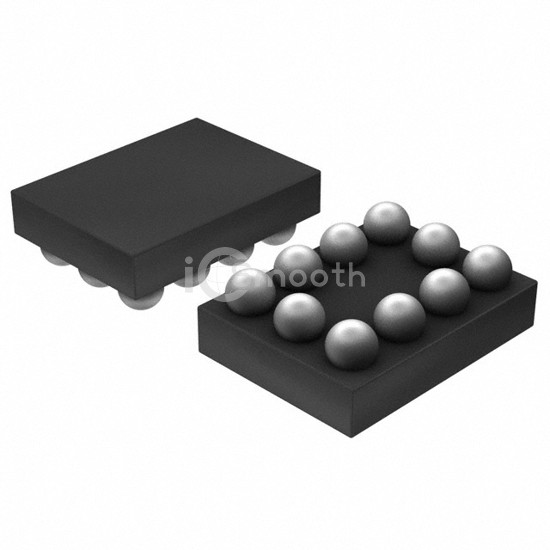

Name: ADG787-BCB-500RL7
Brand: Analog Devices Inc.
SKU: ADG787-BCB-500RL7
Availability: InStock

REF: ADG787-BCB-500RL7 Analog Devices Inc.

ADG787-BCB-500RL7

IC MUX/DEMUX DUAL 2X1 10WLCSP

ADG787-BCB-500RL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MUX/DEMUX DUAL 2X1 10WLCSP. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C (TA), package / case 10-UFBGA, WLCSP, number of circuits 2.

Datasheet Request a Quote

In Stock: 3,721

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	3Ohm
Channel-to-Channel Matching (ΔRon)	20mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	19ns, 5ns

-3db Bandwidth	145MHz
Charge Injection	14pC
Channel Capacitance (CS(off), CD(off))	16pF
Current - Leakage (IS(off)) (Max)	50pA (Typ)
Crosstalk	-110dB @ 1MHz
Operating Temperature	-25°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFBGA, WLCSP
Supplier Device Package	10-WLCSP (2x1.5)
