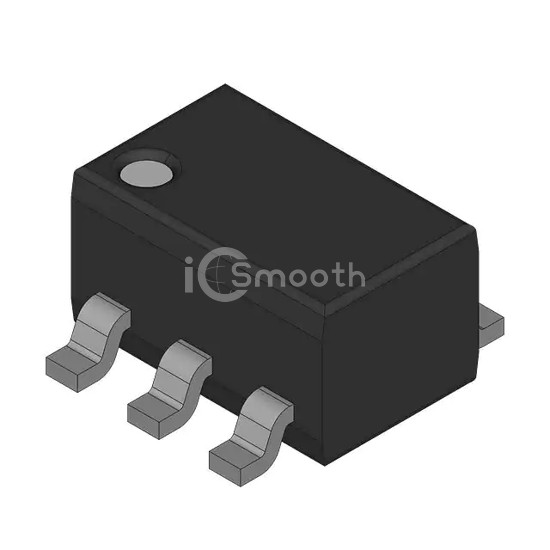

Name: ADG749BKS-R2
Brand: Analog Devices Inc.
SKU: ADG749BKS-R2
Availability: InStock

REF: ADG749BKS-R2 Analog Devices Inc.

ADG749BKS-R2

MULTIPLEXERS/SWITCHES,CMOS

ADG749BKS-R2 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. MULTIPLEXERS/SWITCHES,CMOS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 6-TSSOP, SC-88, SOT-363, number of circuits 1.

Datasheet Request a Quote

In Stock: 1,897

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	5Ohm
Channel-to-Channel Matching (ΔRon)	100mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	1.8V ~ 5.5V
Switch Time (Ton, Toff) (Max)	7ns (Typ), 3ns (Typ)

-3db Bandwidth	200MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	7pF
Current - Leakage (IS(off)) (Max)	250pA
Crosstalk	-82dB @ 1MHz
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-TSSOP, SC-88, SOT-363
Supplier Device Package	SC-70
