Name: ADG620BRTZ-REEL7
Brand: Analog Devices Inc.
SKU: ADG620BRTZ-REEL7
Availability: InStock

REF: ADG620BRTZ-REEL7 Analog Devices Inc.

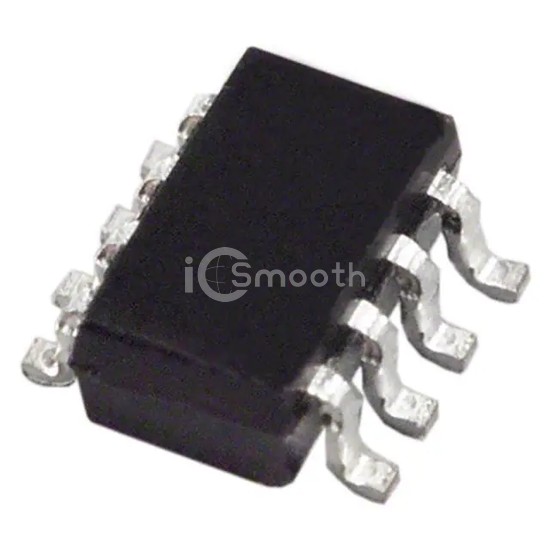

ADG620BRTZ-REEL7

IC SWITCH SPDT SOT23-8

ADG620BRTZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH SPDT SOT23-8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-23-8, number of circuits 1.

Datasheet Request a Quote

In Stock: 1,642

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	6.5Ohm
Channel-to-Channel Matching (ΔRon)	700mOhm
Voltage - Supply, Single (V+)	2.7V ~ 5.5V
Voltage - Supply, Dual (V±)	±2.7V ~ 5.5V
Switch Time (Ton, Toff) (Max)	65ns, 330ns

-3db Bandwidth	190MHz
Charge Injection	110pC
Channel Capacitance (CS(off), CD(off))	25pF
Current - Leakage (IS(off)) (Max)	250pA
Crosstalk	-67dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-8
Supplier Device Package	SOT-23-8
