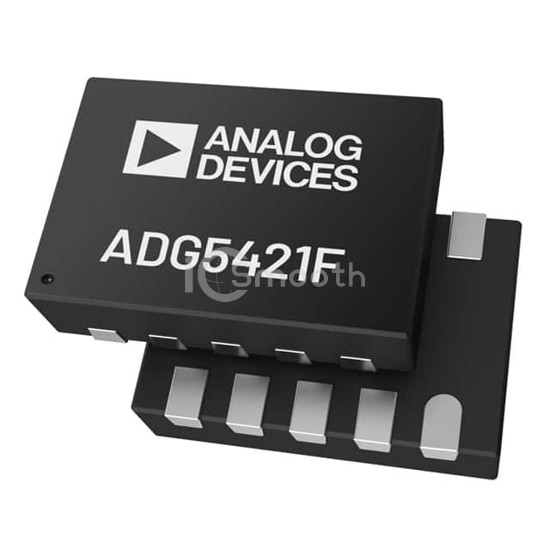

Name: ADG5421FBCPZ-RL7
Brand: Analog Devices Inc.
SKU: ADG5421FBCPZ-RL7
Price: 8.00 USD
Availability: InStock

REF: ADG5421FBCPZ-RL7 Analog Devices Inc.

ADG5421FBCPZ-RL7

Analog Devices Inc.

60V OV PROTECTED, HV SPSTX2 SWIT

ADG5421FBCPZ-RL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. 60V OV PROTECTED, HV SPSTX2 SWIT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 10-WFDFN, CSP, number of circuits 2.

Datasheet Request a Quote

In Stock: 3,178

Tiered Pricing USD

1+ $8.0000 —

10+ $5.3560 -33%

25+ $4.6676 -42%

100+ $3.8885 -51%

250+ $3.5061 -56%

500+ $3.3875 -58% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	2
On-State Resistance (Max)	14Ohm
Channel-to-Channel Matching (ΔRon)	20mOhm
Voltage - Supply, Single (V+)	8V ~ 44V, ±5V ~ 22V
Voltage - Supply, Dual (V±)	8V ~ 44V, ±5V ~ 22V
Switch Time (Ton, Toff) (Max)	15.9µs, 160ns

-3db Bandwidth	630MHz
Charge Injection	-150pC
Channel Capacitance (CS(off), CD(off))	6pF, 5pF
Current - Leakage (IS(off)) (Max)	200pA
Crosstalk	-78dB @ 1MHz
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	10-WFDFN, CSP
Supplier Device Package	10-LFCSP (3x2)
