Name: ADG5409TCPZ-EP
Brand: Analog Devices Inc.
SKU: ADG5409TCPZ-EP
Price: 17.88 USD
Availability: InStock

REF: ADG5409TCPZ-EP Analog Devices Inc.

ADG5409TCPZ-EP

Analog Devices Inc.

IC MUX 2 X 4:1 14 OHM 16LFCSP

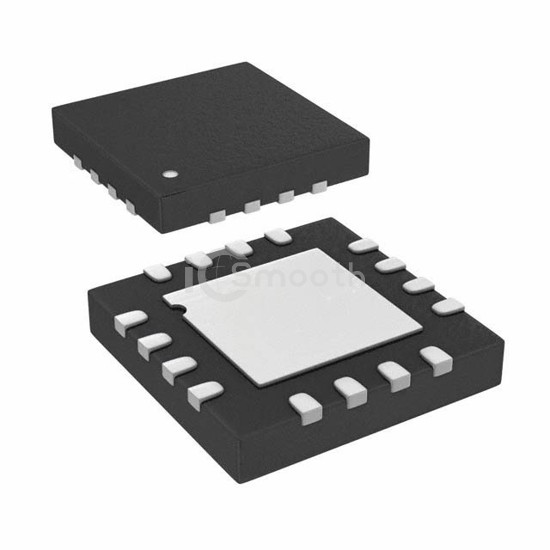

ADG5409TCPZ-EP is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MUX 2 X 4:1 14 OHM 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WQFN Exposed Pad, CSP, number of circuits 2.

Datasheet Request a Quote

In Stock: 6

Tiered Pricing USD

1+ $17.8800 —

10+ $12.5990 -30%

63+ $10.1267 -43%

126+ $9.9000 -45% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	14Ohm
Channel-to-Channel Matching (ΔRon)	300mOhm
Voltage - Supply, Single (V+)	9V ~ 40V
Voltage - Supply, Dual (V±)	±9V ~ 22V
Switch Time (Ton, Toff) (Max)	165ns, 153ns

-3db Bandwidth	88MHz
Charge Injection	155pC
Channel Capacitance (CS(off), CD(off))	17pF, 48pF
Current - Leakage (IS(off)) (Max)	250pA
Crosstalk	-60dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WQFN Exposed Pad, CSP
Supplier Device Package	16-LFCSP-WQ (4x4)
