Name: ADG5298HFRZ
Brand: Analog Devices Inc.
SKU: ADG5298HFRZ
Price: 196.19 USD
Availability: InStock

REF: ADG5298HFRZ Analog Devices Inc.

ADG5298HFRZ

Analog Devices Inc.

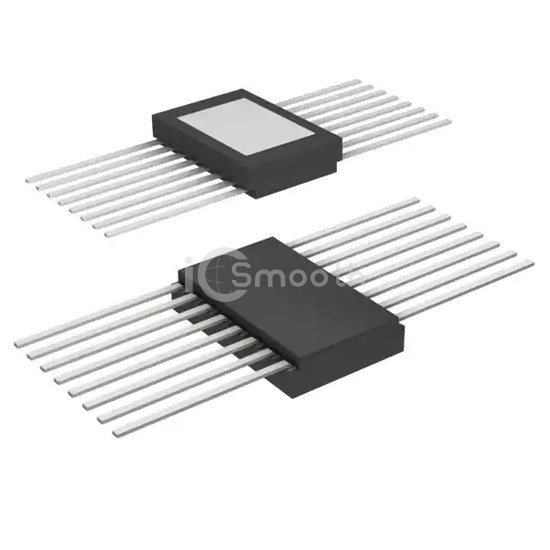

IC MUX/DEMUX 8:1 16FLATPACK

ADG5298HFRZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MUX/DEMUX 8:1 16FLATPACK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 210°C (TA), package / case 16-CFlatPack, number of circuits 1.

Datasheet Request a Quote

In Stock: 6,568

Tiered Pricing USD

1+ $196.1900 —

10+ $191.2620 -3% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	8:1
Number of Circuits	1
On-State Resistance (Max)	350Ohm
Channel-to-Channel Matching (ΔRon)	1.5Ohm
Voltage - Supply, Single (V+)	9V ~ 40V
Voltage - Supply, Dual (V±)	±9V ~ 22V
Switch Time (Ton, Toff) (Max)	245ns, 260ns

-3db Bandwidth	121MHz
Charge Injection	0.4pC
Channel Capacitance (CS(off), CD(off))	2.8pF, 33pF
Current - Leakage (IS(off)) (Max)	8nA
Crosstalk	-80dB @ 1MHz
Operating Temperature	-55°C ~ 210°C (TA)
Mounting Type	Surface Mount
Package / Case	16-CFlatPack
Supplier Device Package	16-CFlatPack
