Name: ADG513BRZ
Brand: Analog Devices Inc.
SKU: ADG513BRZ
Price: 13.16 USD
Availability: InStock

REF: ADG513BRZ Analog Devices Inc.

ADG513BRZ

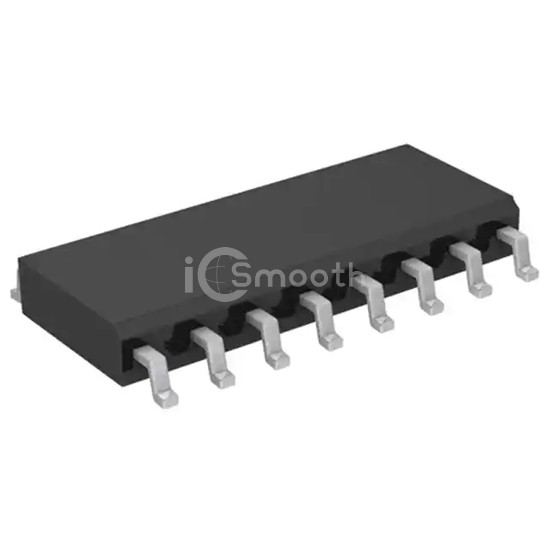

IC SWITCH QUAD SPST 16SOIC

ADG513BRZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH QUAD SPST 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-SOIC (0.154", 3.90mm Width), number of circuits 4.

Datasheet Request a Quote

In Stock: 80

Tiered Pricing USD

1+ $13.1600 —

10+ $9.0930 -31%

48+ $7.4160 -44%

144+ $6.6125 -50% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NO/NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	30Ohm (Typ)
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	3V ~ 5.5V
Voltage - Supply, Dual (V±)	±4.5V ~ 5.5V
Switch Time (Ton, Toff) (Max)	200ns, 120ns (Typ)

-3db Bandwidth	-
Charge Injection	11pC
Channel Capacitance (CS(off), CD(off))	9pF, 9pF
Current - Leakage (IS(off)) (Max)	100pA
Crosstalk	-85dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SOIC
