Name: ADG509FBRN
Brand: Analog Devices Inc.
SKU: ADG509FBRN
Availability: InStock

REF: ADG509FBRN Analog Devices Inc.

ADG509FBRN

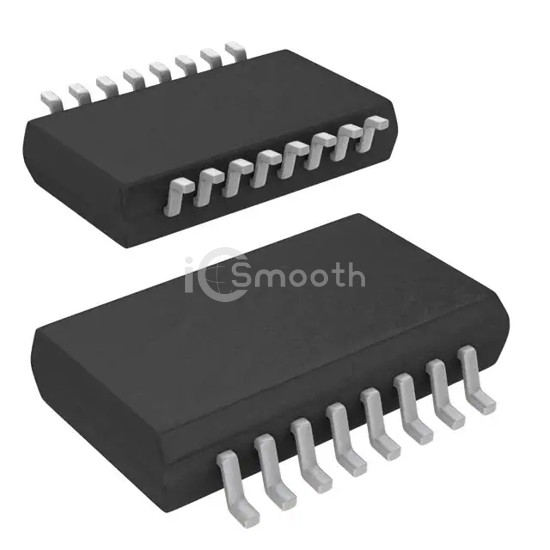

IC MULTIPLEXER DUAL 4X1 16SOIC

ADG509FBRN is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MULTIPLEXER DUAL 4X1 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-SOIC (0.154", 3.90mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 7,901

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	270Ohm (Typ)
Channel-to-Channel Matching (ΔRon)	8.1Ohm
Voltage - Supply, Single (V+)	15V
Voltage - Supply, Dual (V±)	±15V
Switch Time (Ton, Toff) (Max)	230ns, 130ns

-3db Bandwidth	-
Charge Injection	15pC
Channel Capacitance (CS(off), CD(off))	3pF, 12pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SOIC
