Name: ADG507ATE
Brand: Analog Devices Inc.
SKU: ADG507ATE
Availability: InStock

REF: ADG507ATE Analog Devices Inc.

ADG507ATE

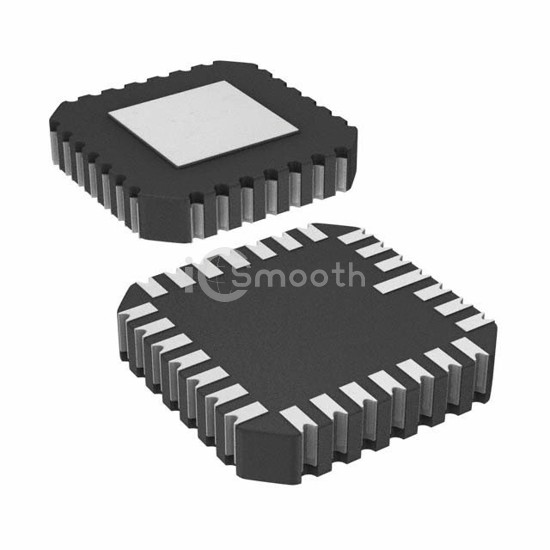

IC MULTIPLEXER DUAL 8X1 28CLCC

ADG507ATE is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MULTIPLEXER DUAL 8X1 28CLCC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 28-LCC, number of circuits 2.

Datasheet Request a Quote

In Stock: 7,785

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	8:1
Number of Circuits	2
On-State Resistance (Max)	300Ohm
Channel-to-Channel Matching (ΔRon)	15Ohm
Voltage - Supply, Single (V+)	10.8V ~ 16.5V
Voltage - Supply, Dual (V±)	±10.8V ~ 16.5V
Switch Time (Ton, Toff) (Max)	300ns, 300ns

-3db Bandwidth	-
Charge Injection	4pC
Channel Capacitance (CS(off), CD(off))	5pF, 22pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	28-LCC
Supplier Device Package	28-LCC (11.43x11.43)
