Name: ADG506ABQ
Brand: Analog Devices Inc.
SKU: ADG506ABQ
Price: 60.85 USD
Availability: InStock

REF: ADG506ABQ Analog Devices Inc.

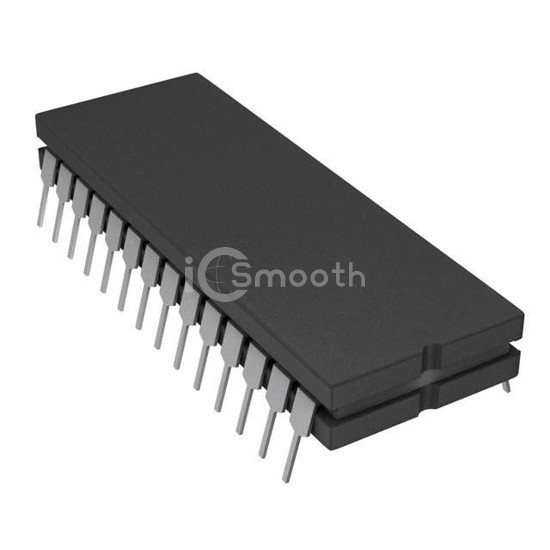

ADG506ABQ

IC MULTIPLEXER 16X1 28CDIP

ADG506ABQ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MULTIPLEXER 16X1 28CDIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), package / case 28-CDIP (0.600", 15.24mm), number of circuits 1.

Datasheet Request a Quote

In Stock: 48

Tiered Pricing USD

1+ $60.8500 —

12+ $46.9250 -23% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	16:1
Number of Circuits	1
On-State Resistance (Max)	300Ohm
Channel-to-Channel Matching (ΔRon)	15Ohm
Voltage - Supply, Single (V+)	10.8V ~ 16.5V
Voltage - Supply, Dual (V±)	±10.8V ~ 16.5V
Switch Time (Ton, Toff) (Max)	300ns, 300ns

-3db Bandwidth	-
Charge Injection	4pC
Channel Capacitance (CS(off), CD(off))	5pF, 44pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Through Hole
Package / Case	28-CDIP (0.600", 15.24mm)
Supplier Device Package	28-CDIP
