Name: ADG419TQ
Brand: Analog Devices Inc.
SKU: ADG419TQ
Price: 18.03 USD
Availability: InStock

REF: ADG419TQ Analog Devices Inc.

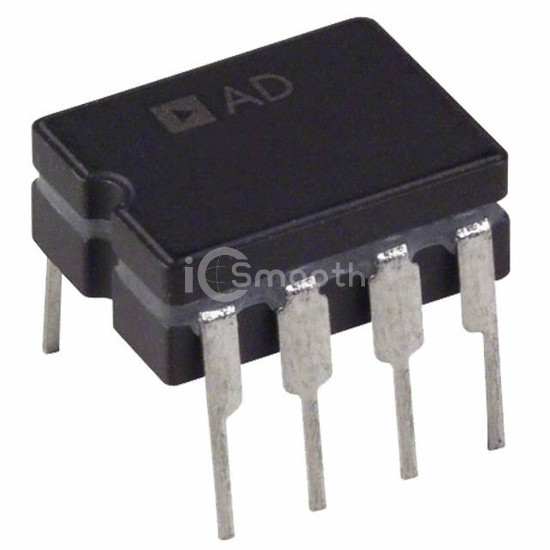

ADG419TQ

IC SWITCH SPDT 8CDIP

ADG419TQ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH SPDT 8CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case 8-CDIP (0.300", 7.62mm), number of circuits 1.

Datasheet Request a Quote

In Stock: 183

Tiered Pricing USD

1+ $18.0300 —

10+ $12.7150 -29%

48+ $10.5233 -42%

144+ $10.0125 -44% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	35Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	12V
Voltage - Supply, Dual (V±)	±15V
Switch Time (Ton, Toff) (Max)	-

-3db Bandwidth	-
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	6pF
Current - Leakage (IS(off)) (Max)	250pA
Crosstalk	-90dB @ 1MHz
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Through Hole
Package / Case	8-CDIP (0.300", 7.62mm)
Supplier Device Package	8-CERDIP
