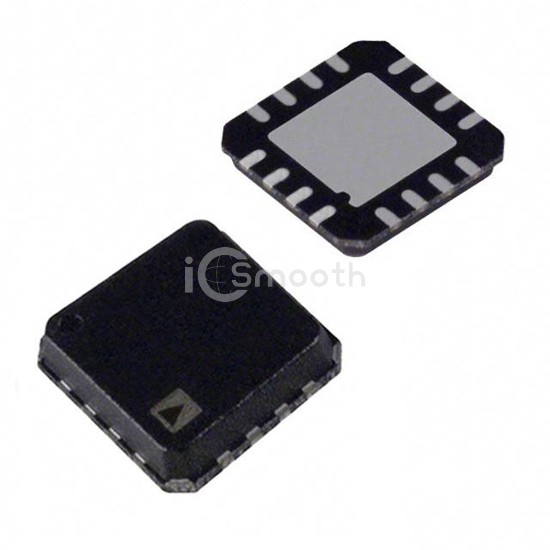

Name: ADG1612BCPZ-REEL
Brand: Analog Devices Inc.
SKU: ADG1612BCPZ-REEL
Price: 6.93 USD
Availability: InStock

REF: ADG1612BCPZ-REEL Analog Devices Inc.

ADG1612BCPZ-REEL

Analog Devices Inc.

IC SWITCH QUAD SPST 16LFCSP

ADG1612BCPZ-REEL is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH QUAD SPST 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-VQFN Exposed Pad, CSP, number of circuits 4.

Datasheet Request a Quote

In Stock: 5,198

Tiered Pricing USD

1+ $6.9300 —

10+ $4.6020 -34%

25+ $3.9948 -42%

100+ $3.3078 -52%

250+ $2.9706 -57%

500+ $2.7875 -60% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	1.1Ohm
Channel-to-Channel Matching (ΔRon)	30mOhm
Voltage - Supply, Single (V+)	3.3V ~ 16V
Voltage - Supply, Dual (V±)	±3.3V ~ 8V
Switch Time (Ton, Toff) (Max)	156ns, 87ns

-3db Bandwidth	38MHz
Charge Injection	170pC
Channel Capacitance (CS(off), CD(off))	60pF, 60pF
Current - Leakage (IS(off)) (Max)	300pA
Crosstalk	-110dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-VQFN Exposed Pad, CSP
Supplier Device Package	16-LFCSP-VQ (4x4)
