Name: ADG1604BCPZ-REEL
Brand: Analog Devices Inc.
SKU: ADG1604BCPZ-REEL
Price: 7.16 USD
Availability: InStock

REF: ADG1604BCPZ-REEL Analog Devices Inc.

ADG1604BCPZ-REEL

Analog Devices Inc.

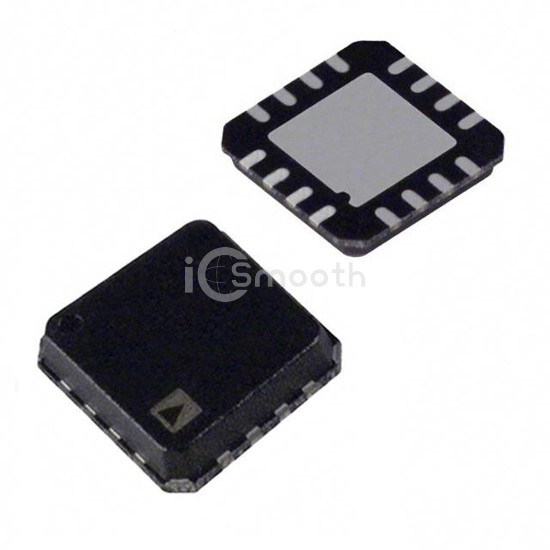

IC MULTIPLEXER 4X1 16LFCSP

ADG1604BCPZ-REEL is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MULTIPLEXER 4X1 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-VQFN Exposed Pad, CSP, number of circuits 1.

Datasheet Request a Quote

In Stock: 1,251

Tiered Pricing USD

1+ $7.1600 —

10+ $4.7620 -33%

25+ $4.1368 -42%

100+ $3.4301 -52%

250+ $3.0832 -57%

500+ $2.9125 -59% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	1
On-State Resistance (Max)	1.1Ohm
Channel-to-Channel Matching (ΔRon)	30mOhm
Voltage - Supply, Single (V+)	3.3V ~ 16V
Voltage - Supply, Dual (V±)	±3.3V ~ 8V
Switch Time (Ton, Toff) (Max)	95ns, 173ns

-3db Bandwidth	19MHz
Charge Injection	125pC
Channel Capacitance (CS(off), CD(off))	60pF, 270pF
Current - Leakage (IS(off)) (Max)	200pA
Crosstalk	-70dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-VQFN Exposed Pad, CSP
Supplier Device Package	16-LFCSP-VQ (4x4)
