ADG1436YCPZ-REEL

In Stock: 6,936
ADG1436YCPZ-REEL - Analog Devices Inc. - Interface - Analog Switches, Multiplexers, Demultiplexers
REF: ADG1436YCPZ-REEL Analog Devices Inc.
ADG1436YCPZ-REEL

Analog Devices Inc.

IC SWITCH SPDT DUAL 16LFCSP

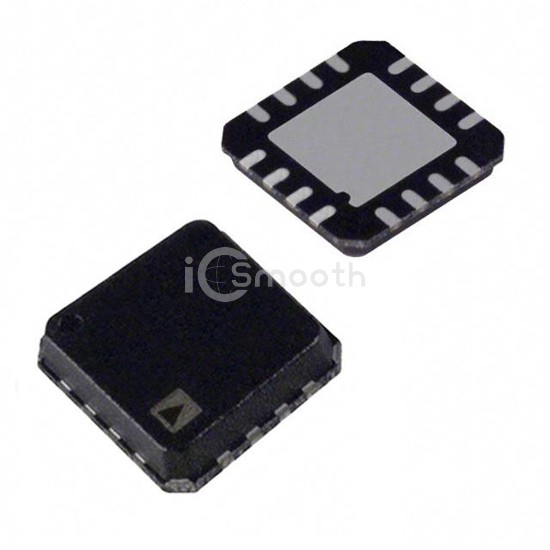

ADG1436YCPZ-REEL is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH SPDT DUAL 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-VQFN Exposed Pad, CSP, number of circuits 2.

Datasheet Request a Quote

In Stock: 6,936

Tiered Pricing USD
1+ $9.8900 —
10+ $6.7090 -32%
25+ $5.8804 -41%
100+ $4.9435 -50%
250+ $4.5125 -54% BEST

Specifications

18 parameters
Product StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits2
On-State Resistance (Max)1.8Ohm
Channel-to-Channel Matching (ΔRon)100mOhm
Voltage - Supply, Single (V+)5V ~ 16.5V
Voltage - Supply, Dual (V±)±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)120ns, 130ns
-3db Bandwidth110MHz
Charge Injection-20pC
Channel Capacitance (CS(off), CD(off))23pF, 50pF
Current - Leakage (IS(off)) (Max)550pA
Crosstalk-80dB @ 100kHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-VQFN Exposed Pad, CSP
Supplier Device Package16-LFCSP-VQ (4x4)
