ADG1433YCPZ-REEL7

In Stock: 5,037

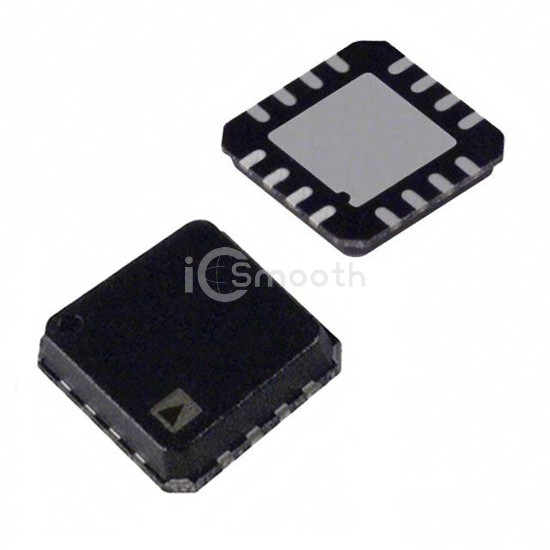

ADG1433YCPZ-REEL7 - Analog Devices Inc. - Interface - Analog Switches, Multiplexers, Demultiplexers
REF: ADG1433YCPZ-REEL7 Analog Devices Inc.
ADG1433YCPZ-REEL7

Analog Devices Inc.

IC SWITCH TRIPLE SPDT 16LFCSP

ADG1433YCPZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH TRIPLE SPDT 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-VQFN Exposed Pad, CSP, number of circuits 3.

Datasheet Request a Quote

In Stock: 5,037

Tiered Pricing USD
1+ $9.1500 —
10+ $6.1760 -33%
25+ $5.4016 -41%
100+ $4.5260 -51%
250+ $4.0961 -55%
500+ $4.0625 -56% BEST

Specifications

18 parameters
Product StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits3
On-State Resistance (Max)4.7Ohm
Channel-to-Channel Matching (ΔRon)500mOhm
Voltage - Supply, Single (V+)5V ~ 16.5V
Voltage - Supply, Dual (V±)±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)170ns, 75ns
-3db Bandwidth200MHz
Charge Injection-50pC
Channel Capacitance (CS(off), CD(off))12pF, 22pF
Current - Leakage (IS(off)) (Max)300pA
Crosstalk-70dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-VQFN Exposed Pad, CSP
Supplier Device Package16-LFCSP-VQ (4x4)
