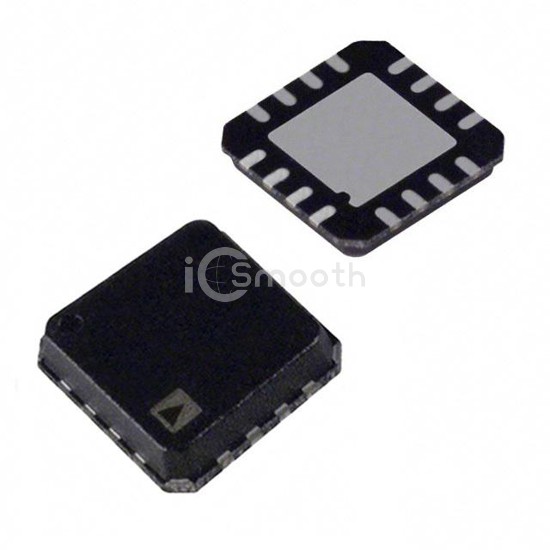

Name: ADG1413YCPZ-REEL7
Brand: Analog Devices Inc.
SKU: ADG1413YCPZ-REEL7
Price: 9.44 USD
Availability: InStock

REF: ADG1413YCPZ-REEL7 Analog Devices Inc.

ADG1413YCPZ-REEL7

Analog Devices Inc.

IC SWITCH QUAD SPST 16LFCSP

ADG1413YCPZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH QUAD SPST 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-VQFN Exposed Pad, CSP, number of circuits 4.

Datasheet Request a Quote

In Stock: 9,866

Tiered Pricing USD

1+ $9.4400 —

10+ $6.3850 -32%

25+ $5.5888 -41%

100+ $4.6890 -50%

250+ $4.2473 -55%

500+ $4.2375 -55% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NO/NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	1.8Ohm
Channel-to-Channel Matching (ΔRon)	100mOhm
Voltage - Supply, Single (V+)	5V ~ 16.5V
Voltage - Supply, Dual (V±)	±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)	150ns, 120ns

-3db Bandwidth	170MHz
Charge Injection	-20pC
Channel Capacitance (CS(off), CD(off))	23pF, 23pF
Current - Leakage (IS(off)) (Max)	550pA
Crosstalk	-100dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-VQFN Exposed Pad, CSP
Supplier Device Package	16-LFCSP-VQ (4x4)
