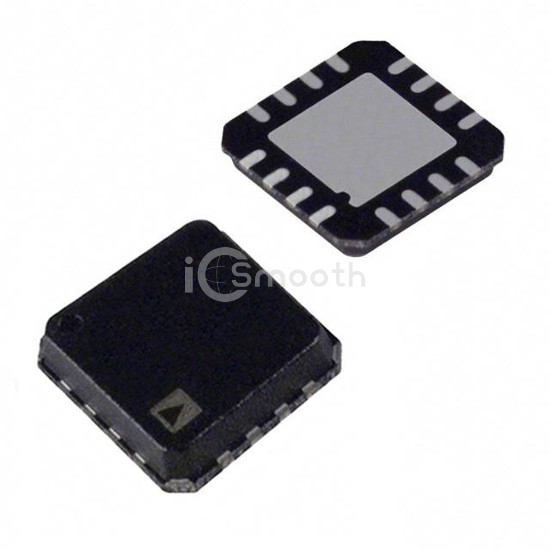

Name: ADG1409YCPZ-REEL7
Brand: Analog Devices Inc.
SKU: ADG1409YCPZ-REEL7
Price: 10.33 USD
Availability: InStock

REF: ADG1409YCPZ-REEL7 Analog Devices Inc.

ADG1409YCPZ-REEL7

Analog Devices Inc.

IC MULTIPLEXER DUAL 4X1 16LFCSP

ADG1409YCPZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MULTIPLEXER DUAL 4X1 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-VQFN Exposed Pad, CSP, number of circuits 2.

Datasheet Request a Quote

In Stock: 1,346

Tiered Pricing USD

1+ $10.3300 —

10+ $7.0310 -32%

25+ $6.1696 -40%

100+ $5.1962 -50%

250+ $4.7875 -54% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	4.7Ohm
Channel-to-Channel Matching (ΔRon)	200mOhm
Voltage - Supply, Single (V+)	5V ~ 16.5V
Voltage - Supply, Dual (V±)	±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)	120ns, 120ns

-3db Bandwidth	115MHz
Charge Injection	-50pC
Channel Capacitance (CS(off), CD(off))	14pF, 40pF
Current - Leakage (IS(off)) (Max)	200pA
Crosstalk	-70dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-VQFN Exposed Pad, CSP
Supplier Device Package	16-LFCSP-VQ (4x4)
