ADG1404YCPZ-REEL

In Stock: 6,092

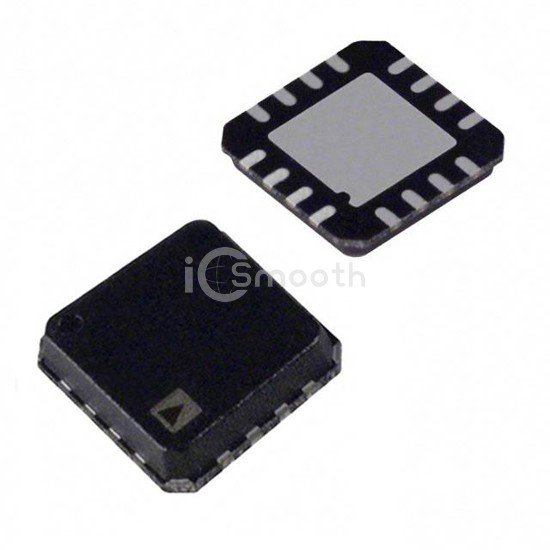

ADG1404YCPZ-REEL - Analog Devices Inc. - Interface - Analog Switches, Multiplexers, Demultiplexers
REF: ADG1404YCPZ-REEL Analog Devices Inc.
ADG1404YCPZ-REEL

Analog Devices Inc.

IC MULTIPLEXER 4X1 16LFCSP

ADG1404YCPZ-REEL is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MULTIPLEXER 4X1 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-VQFN Exposed Pad, CSP, number of circuits 1.

Datasheet Request a Quote

In Stock: 6,092

Tiered Pricing USD
1+ $9.8900 —
10+ $6.7090 -32%
25+ $5.8804 -41%
100+ $4.9435 -50%
250+ $4.5125 -54% BEST

Specifications

18 parameters
Product StatusActive
Switch CircuitSP4T
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits1
On-State Resistance (Max)1.8Ohm
Channel-to-Channel Matching (ΔRon)100mOhm
Voltage - Supply, Single (V+)5V ~ 16.5V
Voltage - Supply, Dual (V±)±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)120ns, 135ns
-3db Bandwidth55MHz
Charge Injection-20pC
Channel Capacitance (CS(off), CD(off))23pF, 90pF
Current - Leakage (IS(off)) (Max)550pA
Crosstalk-82dB @ 100kHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-VQFN Exposed Pad, CSP
Supplier Device Package16-LFCSP-VQ (4x4)
