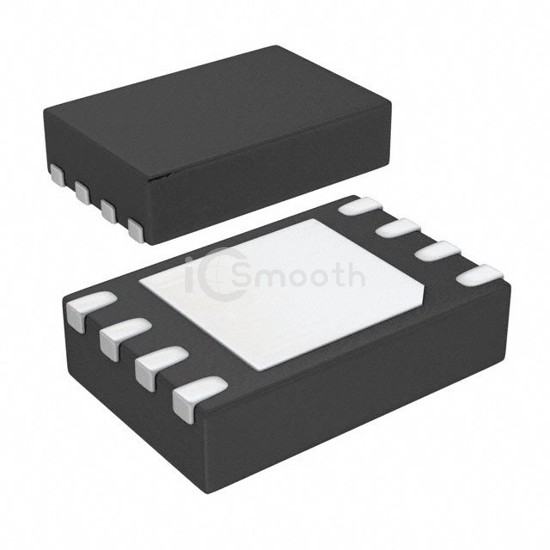

Name: ADG1402BCPZ-REEL7
Brand: Analog Devices Inc.
SKU: ADG1402BCPZ-REEL7
Price: 6.03 USD
Availability: InStock

REF: ADG1402BCPZ-REEL7 Analog Devices Inc.

ADG1402BCPZ-REEL7

Analog Devices Inc.

IC SWITCH SPST 1OHM RON 8LFCSP

ADG1402BCPZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH SPST 1OHM RON 8LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 8-WFDFN Exposed Pad, CSP, number of circuits 1.

Datasheet Request a Quote

In Stock: 6,828

Tiered Pricing USD

1+ $6.0300 —

10+ $3.9670 -34%

25+ $3.4304 -43%

100+ $2.8236 -53%

250+ $2.5256 -58%

500+ $2.3423 -61%

1,000+ $2.3000 -62% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	1
On-State Resistance (Max)	1.3Ohm
Channel-to-Channel Matching (ΔRon)	200mOhm
Voltage - Supply, Single (V+)	5V ~ 16.5V
Voltage - Supply, Dual (V±)	±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)	150ns, 150ns

-3db Bandwidth	120MHz
Charge Injection	-12pC
Channel Capacitance (CS(off), CD(off))	36pF, 41pF
Current - Leakage (IS(off)) (Max)	400pA
Crosstalk	-
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad, CSP
Supplier Device Package	8-LFCSP-WD (2x3)
