Name: ADG1236YCPZ-REEL7
Brand: Analog Devices Inc.
SKU: ADG1236YCPZ-REEL7
Price: 7.49 USD
Availability: InStock

REF: ADG1236YCPZ-REEL7 Analog Devices Inc.

ADG1236YCPZ-REEL7

Analog Devices Inc.

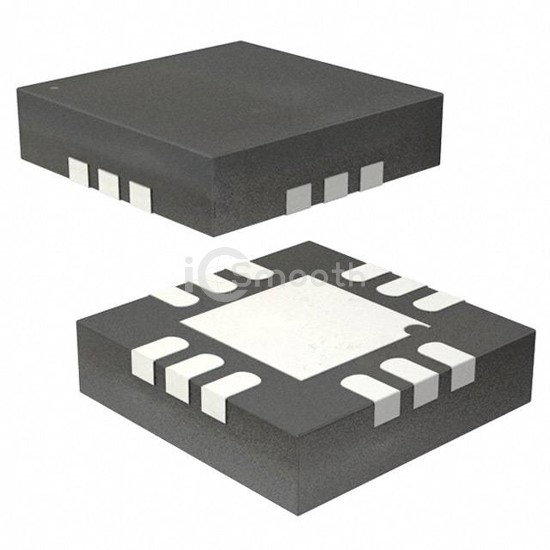

IC SWITCH DUAL SPDT 12LFCSP

ADG1236YCPZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH DUAL SPDT 12LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 12-WFQFN Exposed Pad, CSP, number of circuits 2.

Datasheet Request a Quote

In Stock: 7,501

Tiered Pricing USD

1+ $7.4900 —

10+ $4.9980 -33%

25+ $4.3476 -42%

100+ $3.6121 -52%

250+ $3.2510 -57%

500+ $3.1000 -59% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	190Ohm
Channel-to-Channel Matching (ΔRon)	3.5Ohm
Voltage - Supply, Single (V+)	12V
Voltage - Supply, Dual (V±)	±15V
Switch Time (Ton, Toff) (Max)	150ns, 90ns

-3db Bandwidth	1GHz
Charge Injection	-1pC
Channel Capacitance (CS(off), CD(off))	1.6pF
Current - Leakage (IS(off)) (Max)	100pA
Crosstalk	-85dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	12-WFQFN Exposed Pad, CSP
Supplier Device Package	12-LFCSP (3x3)
