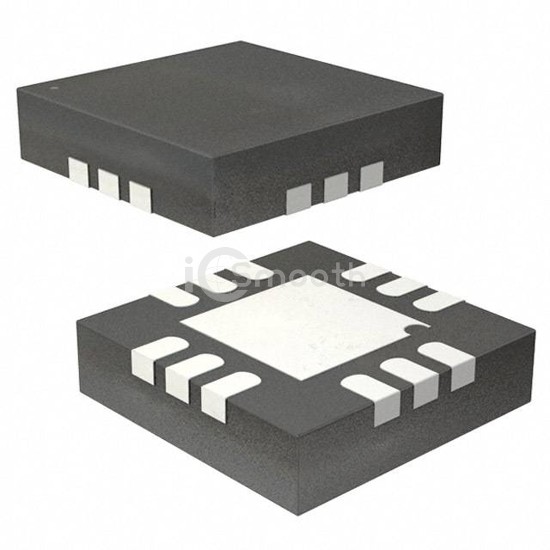

Name: ADG1236YCPZ-500RL7
Brand: Analog Devices Inc.
SKU: ADG1236YCPZ-500RL7
Price: 7.56 USD
Availability: InStock

REF: ADG1236YCPZ-500RL7 Analog Devices Inc.

ADG1236YCPZ-500RL7

Analog Devices Inc.

IC SWITCH DUAL SPDT 12LFCSP

ADG1236YCPZ-500RL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH DUAL SPDT 12LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 12-WFQFN Exposed Pad, CSP, number of circuits 2.

Datasheet Request a Quote

In Stock: 5,265

Tiered Pricing USD

1+ $7.5600 —

10+ $5.0450 -33%

25+ $4.3896 -42%

100+ $3.6484 -52%

250+ $3.2844 -57% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	190Ohm
Channel-to-Channel Matching (ΔRon)	3.5Ohm
Voltage - Supply, Single (V+)	12V
Voltage - Supply, Dual (V±)	±15V
Switch Time (Ton, Toff) (Max)	150ns, 90ns

-3db Bandwidth	1GHz
Charge Injection	-1pC
Channel Capacitance (CS(off), CD(off))	1.6pF
Current - Leakage (IS(off)) (Max)	100pA
Crosstalk	-85dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	12-WFQFN Exposed Pad, CSP
Supplier Device Package	12-LFCSP (3x3)
