Name: ADG1219BRJZ-REEL7
Brand: Analog Devices Inc.
SKU: ADG1219BRJZ-REEL7
Price: 6.26 USD
Availability: InStock

REF: ADG1219BRJZ-REEL7 Analog Devices Inc.

ADG1219BRJZ-REEL7

Analog Devices Inc.

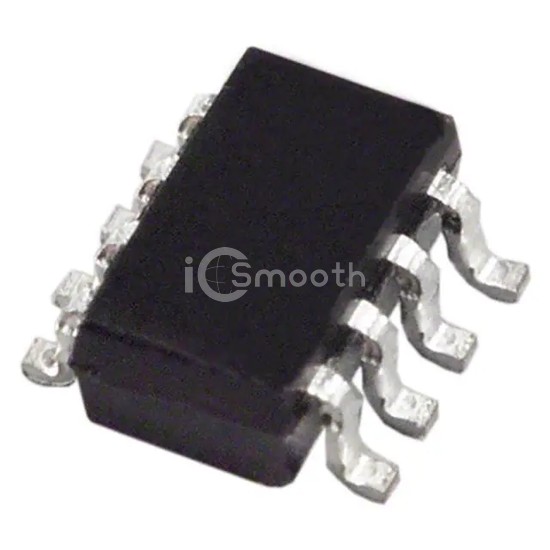

IC SWITCH SPDT SOT23-8

ADG1219BRJZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH SPDT SOT23-8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case SOT-23-8, number of circuits 1.

Datasheet Request a Quote

In Stock: 3,782

Tiered Pricing USD

1+ $6.2600 —

10+ $4.1320 -34%

25+ $3.5768 -43%

100+ $2.9490 -53%

250+ $2.6407 -58%

500+ $2.4511 -61%

1,000+ $2.4250 -61% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	200Ohm
Channel-to-Channel Matching (ΔRon)	3.5Ohm
Voltage - Supply, Single (V+)	5V ~ 16.5V
Voltage - Supply, Dual (V±)	±5V ~ 16.5V
Switch Time (Ton, Toff) (Max)	105ns, 125ns

-3db Bandwidth	520MHz
Charge Injection	0.1pC
Channel Capacitance (CS(off), CD(off))	3.3pF, 5.1pF
Current - Leakage (IS(off)) (Max)	100pA
Crosstalk	-80dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-8
Supplier Device Package	SOT-23-8
