Name: AD7506JQ
Brand: Analog Devices Inc.
SKU: AD7506JQ
Availability: InStock

REF: AD7506JQ Analog Devices Inc.

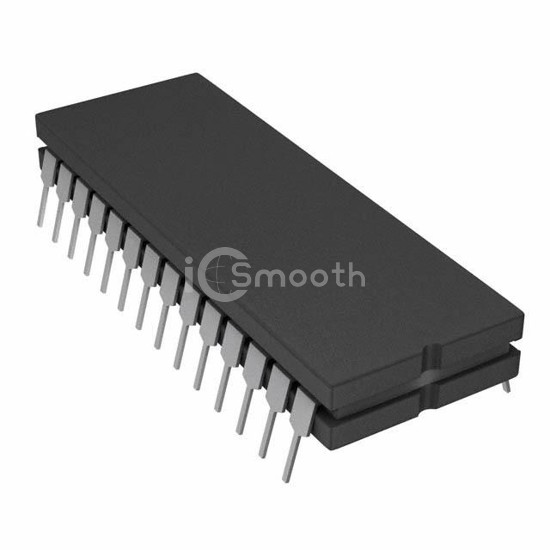

AD7506JQ

IC MULTIPLEXER 16X1 28CDIP

AD7506JQ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MULTIPLEXER 16X1 28CDIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C (TA), package / case 28-CDIP (0.600", 15.24mm), number of circuits 1.

Datasheet Request a Quote

In Stock: 5,560

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	16:1
Number of Circuits	1
On-State Resistance (Max)	450Ohm
Channel-to-Channel Matching (ΔRon)	18Ohm
Voltage - Supply, Single (V+)	-
Voltage - Supply, Dual (V±)	±15V
Switch Time (Ton, Toff) (Max)	1.5µs, 1µs

-3db Bandwidth	-
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	5pF, 40pF
Current - Leakage (IS(off)) (Max)	-
Crosstalk	-
Operating Temperature	-25°C ~ 85°C (TA)
Mounting Type	Through Hole
Package / Case	28-CDIP (0.600", 15.24mm)
Supplier Device Package	28-CDIP
