Name: 5962-8971002XX
Brand: Analog Devices Inc.
SKU: 5962-8971002XX
Price: 38.47 USD
Availability: InStock

REF: 5962-8971002XX Analog Devices Inc.

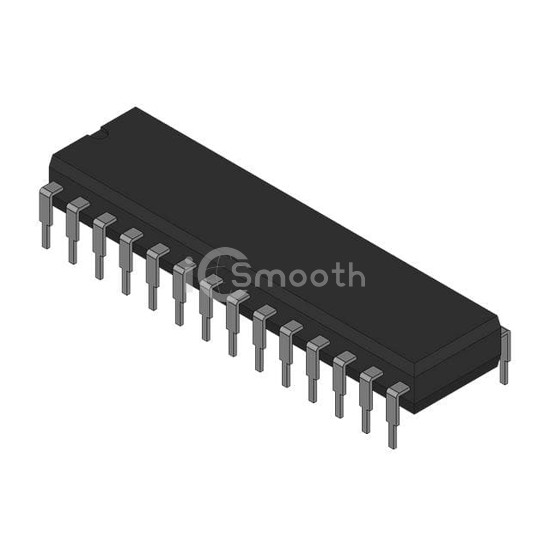

5962-8971002XX

Analog Devices Inc.

8 CHANNEL ANALOG MUX

5962-8971002XX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. 8 CHANNEL ANALOG MUX. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case 28-CDIP (0.600", 15.24mm), number of circuits 2.

Datasheet Request a Quote

In Stock: 660

Specifications

18 parameters

Product Status	Active
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	8:1
Number of Circuits	2
On-State Resistance (Max)	450Ohm
Channel-to-Channel Matching (ΔRon)	22.5Ohm
Voltage - Supply, Single (V+)	10.8V ~ 16.5V, ±10.8V ~ 16.5V
Voltage - Supply, Dual (V±)	10.8V ~ 16.5V, ±10.8V ~ 16.5V
Switch Time (Ton, Toff) (Max)	300ns, 300ns

-3db Bandwidth	-
Charge Injection	4pC
Channel Capacitance (CS(off), CD(off))	5pF, 22pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-
Operating Temperature	-55°C ~ 125°C
Mounting Type	Through Hole
Package / Case	28-CDIP (0.600", 15.24mm)
Supplier Device Package	28-CDIP
