Name: 5962-8971001XX
Brand: Analog Devices Inc.
SKU: 5962-8971001XX
Price: 95.57 USD
Availability: InStock

REF: 5962-8971001XX Analog Devices Inc.

5962-8971001XX

Analog Devices Inc.

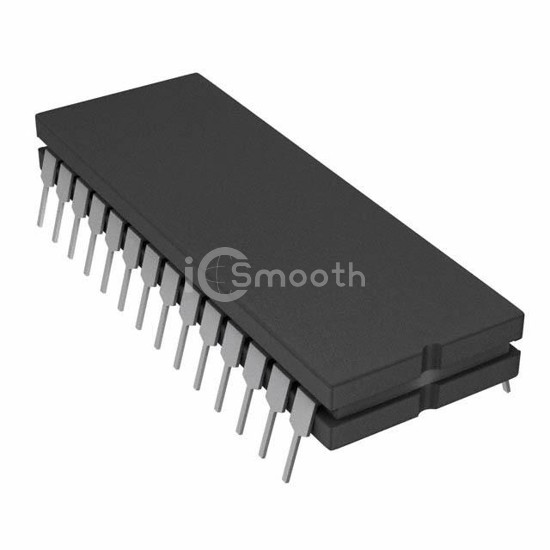

IC MULTIPLEXER 16X1 28CERDIP

5962-8971001XX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MULTIPLEXER 16X1 28CERDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case 28-CDIP (0.600", 15.24mm), number of circuits 1.

Request a Quote

In Stock: 8

Tiered Pricing USD

1+ $95.5700 —

12+ $81.3875 -15% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST
Multiplexer/Demultiplexer Circuit	16:1
Number of Circuits	1
On-State Resistance (Max)	450Ohm
Channel-to-Channel Matching (ΔRon)	22.5Ohm
Voltage - Supply, Single (V+)	10.8V ~ 16.5V
Voltage - Supply, Dual (V±)	±10.8V ~ 16.5V
Switch Time (Ton, Toff) (Max)	300ns, 300ns

-3db Bandwidth	-
Charge Injection	4pC
Channel Capacitance (CS(off), CD(off))	5pF, 44pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-
Operating Temperature	-55°C ~ 125°C
Mounting Type	Through Hole
Package / Case	28-CDIP (0.600", 15.24mm)
Supplier Device Package	28-CDIP
