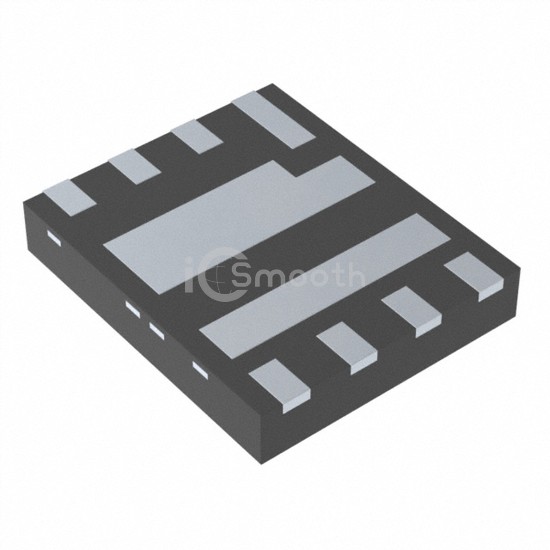

Name: AONX38168
Brand: Alpha & Omega Semiconductor Inc.
SKU: AONX38168
Price: 2.16 USD
Availability: InStock

REF: AONX38168 Alpha & Omega Semiconductor Inc.

AONX38168

Alpha & Omega Semiconductor Inc.

25V DUAL ASYMMETRIC N-CHANNEL XS

AONX38168 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. 25V DUAL ASYMMETRIC N-CHANNEL XS. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-VDFN Exposed Pad, power - max 3.1W (Ta), 20W (Tc), 3.2W (Ta), 69W (Tc).

Datasheet Request a Quote

In Stock: 2,292

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual) Asymmetrical
FET Feature	Standard
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25°C	25A (Ta), 62A (Tc), 50A (Ta), 85A (Tc)
Rds On (Max) @ Id, Vgs	3.3mOhm @ 20A, 10V, 0.8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	1.9V @ 250µA, 1.8V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	24nC @ 10V, 85nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1.15nF @ 12.5V, 4.52nF @ 12.5V
Power - Max	3.1W (Ta), 20W (Tc), 3.2W (Ta), 69W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-VDFN Exposed Pad
Supplier Device Package	8-DFN (5x6)
