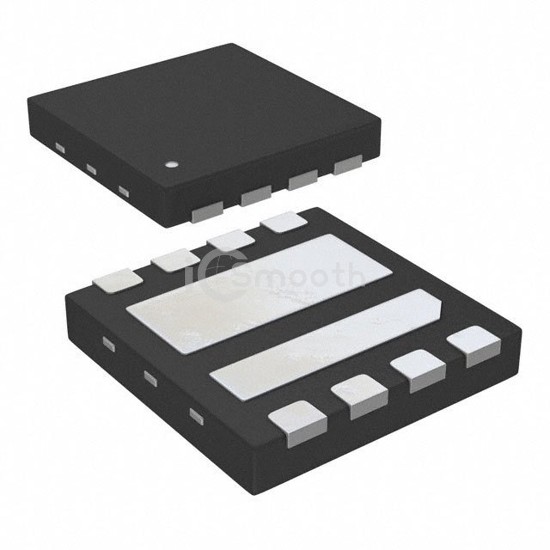

Name: AON7934_101
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON7934_101
Availability: InStock

REF: AON7934_101 Alpha & Omega Semiconductor Inc.

AON7934_101

MOSFET

AON7934_101 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-WDFN Exposed Pad, power - max 2.5W (Ta), 23W (Tc), 2.5W (Ta), 25W (Tc).

Datasheet Request a Quote

In Stock: 5,750

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	13A (Ta), 16A (Tc), 15A (Ta), 18A (Tc)
Rds On (Max) @ Id, Vgs	10.2mOhm @ 13A, 10V, 7.7mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	11nC @ 10V, 17.5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	485pF @ 15V, 807pF @ 15V
Power - Max	2.5W (Ta), 23W (Tc), 2.5W (Ta), 25W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-WDFN Exposed Pad
Supplier Device Package	8-DFN-EP (3x3)
