Name: AON7934
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON7934
Price: 0.43 USD
Availability: InStock

REF: AON7934 Alpha & Omega Semiconductor Inc.

AON7934

Alpha & Omega Semiconductor Inc.

MOSFET 2N-CH 30V 13A/15A 8DFN

AON7934 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2N-CH 30V 13A/15A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-WDFN Exposed Pad, power - max 2.5W.

Datasheet Request a Quote

In Stock: 4,017

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	13A, 15A
Rds On (Max) @ Id, Vgs	10.2mOhm @ 13A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	11nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	485pF @ 15V
Power - Max	2.5W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

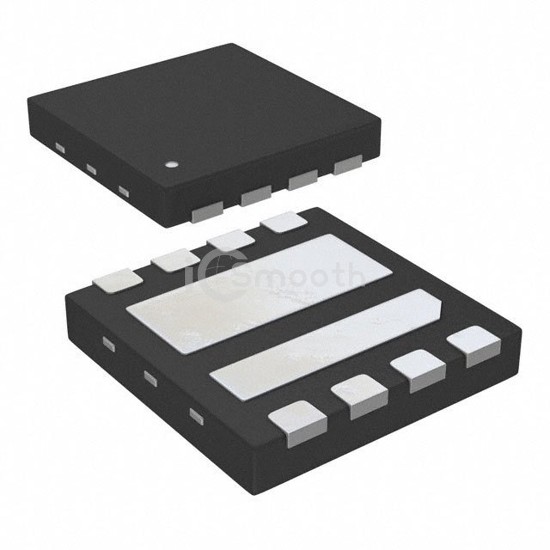

Package / Case	8-WDFN Exposed Pad
Supplier Device Package	8-DFN-EP (3x3)
