Name: AON7900
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON7900
Availability: InStock

REF: AON7900 Alpha & Omega Semiconductor Inc.

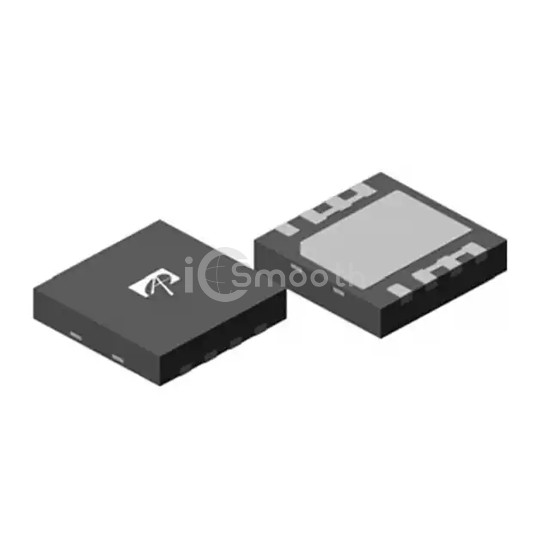

AON7900

MOSFET 2N-CH 30V 8A/13A 8DFN

AON7900 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2N-CH 30V 8A/13A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 1.8W.

Datasheet Request a Quote

In Stock: 4,648

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Half Bridge)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	8A, 13A
Rds On (Max) @ Id, Vgs	21mOhm @ 8A, 10V
Vgs(th) (Max) @ Id	2.3V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	11nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	710pF @ 15V
Power - Max	1.8W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-DFN-EP (3.3x3.3)
