Name: AON7812
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON7812
Availability: InStock

REF: AON7812 Alpha & Omega Semiconductor Inc.

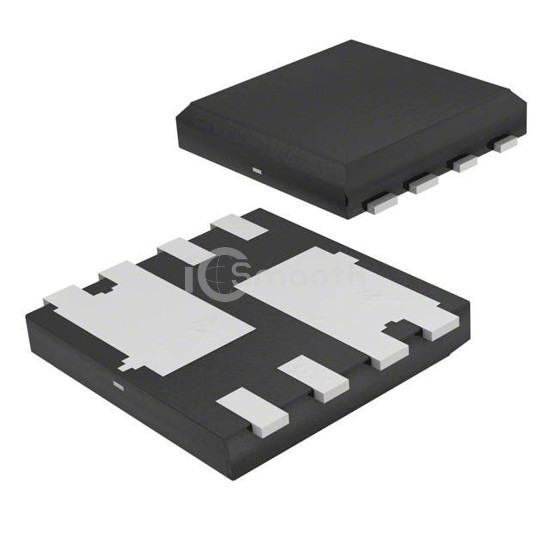

AON7812

MOSFET 2N-CH 30V 6A

AON7812 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2N-CH 30V 6A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerSMD, Flat Leads, power - max 4.1W.

Datasheet Request a Quote

In Stock: 3,647

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual) Asymmetrical
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	6A
Rds On (Max) @ Id, Vgs	14.5mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	15nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	600pF @ 15V
Power - Max	4.1W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerSMD, Flat Leads
Supplier Device Package	8-DFN (3x3)
