Name: AON7804_101
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON7804_101
Availability: InStock

REF: AON7804_101 Alpha & Omega Semiconductor Inc.

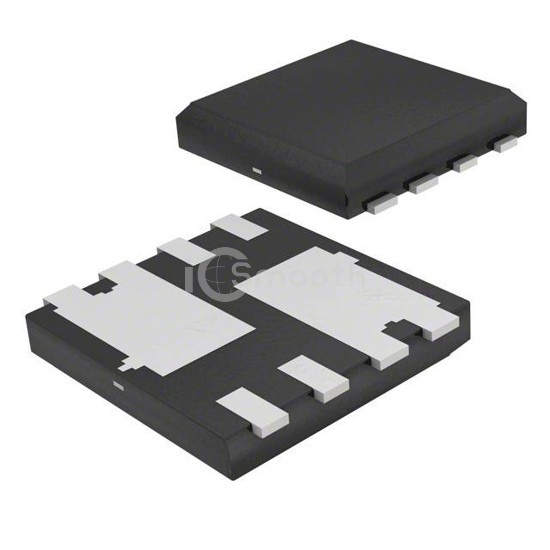

AON7804_101

MOSFET

AON7804_101 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerSMD, Flat Leads, power - max 3.1W (Ta), 17W (Tc).

Datasheet Request a Quote

In Stock: 4,836

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	9A (Ta), 22A (Tc)
Rds On (Max) @ Id, Vgs	21mOhm @ 8A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	18nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	888pF @ 15V
Power - Max	3.1W (Ta), 17W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerSMD, Flat Leads
Supplier Device Package	8-DFN (3x3)
