AON6922

In Stock: 2,420

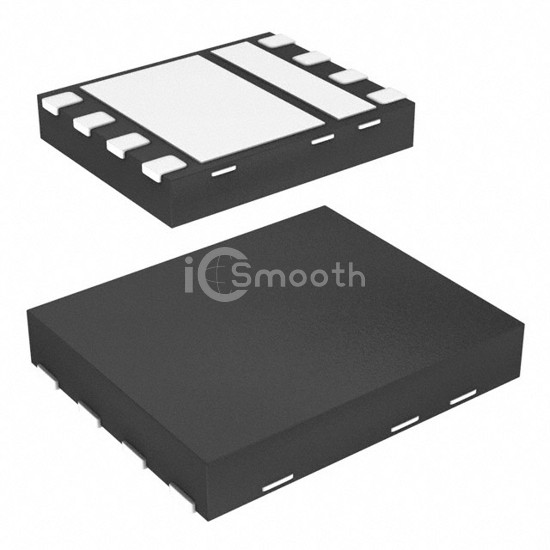

AON6922 - Alpha & Omega Semiconductor Inc. - Transistors - FETs, MOSFETs - Arrays
REF: AON6922 Alpha & Omega Semiconductor Inc.
AON6922

Alpha & Omega Semiconductor Inc.

MOSFET 2N-CH 25V 18A/31A 8DFN

AON6922 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2N-CH 25V 18A/31A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-WDFN Exposed Pad, power - max 2W, 2.2W.

Datasheet Request a Quote

In Stock: 2,420

Specifications

14 parameters
Product StatusObsolete
FET Type2 N-Channel (Half Bridge)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C18A, 31A
Rds On (Max) @ Id, Vgs3.8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id1.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs32nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds2340pF @ 12.5V
Power - Max2W, 2.2W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-WDFN Exposed Pad
Supplier Device Package8-DFN-EP (5x6)
