Name: AON6920_001
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON6920_001
Availability: InStock

REF: AON6920_001 Alpha & Omega Semiconductor Inc.

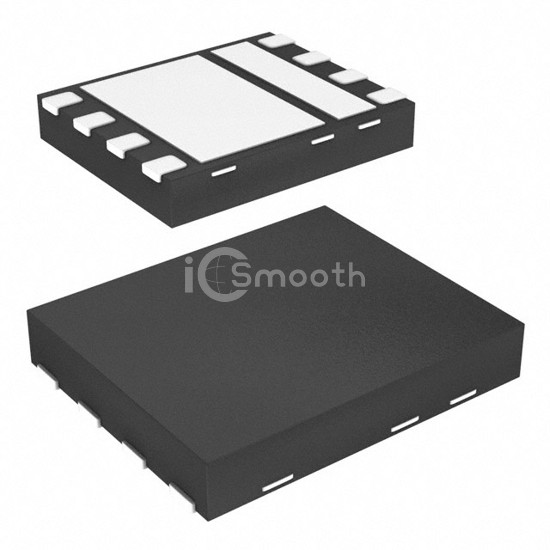

AON6920_001

MOSFET 2N-CH 30V 5X6DFN

AON6920_001 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2N-CH 30V 5X6DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-WDFN Exposed Pad, power - max 2W, 2.2W.

Datasheet Request a Quote

In Stock: 4,177

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual) Asymmetrical
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	15A, 26.5A
Rds On (Max) @ Id, Vgs	5.2mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.3V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	21nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1560pF @ 15V
Power - Max	2W, 2.2W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-WDFN Exposed Pad
Supplier Device Package	8-DFN-EP (5x6)
