AON5816

In Stock: 1,202

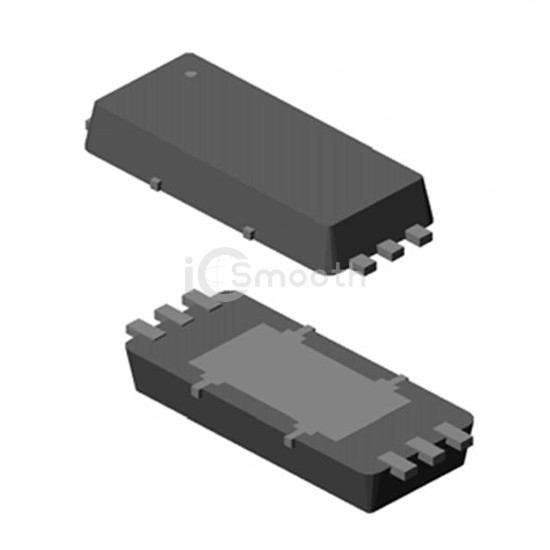

AON5816 - Alpha & Omega Semiconductor Inc. - Transistors - FETs, MOSFETs - Arrays
REF: AON5816 Alpha & Omega Semiconductor Inc.
AON5816

Alpha & Omega Semiconductor Inc.

MOSFET 2 N-CHANNEL 20V 12A 6DFN

AON5816 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2 N-CHANNEL 20V 12A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WFDFN Exposed Pad, power - max 1.7W.

Datasheet Request a Quote

In Stock: 1,202

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual) Common Drain
FET FeatureStandard
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C12A (Ta)
Rds On (Max) @ Id, Vgs6.5mOhm @ 12A, 4.5V
Vgs(th) (Max) @ Id1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs35nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds2170pF @ 10V
Power - Max1.7W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WFDFN Exposed Pad
Supplier Device Package6-DFN-EP (2x5)
