Name: AON5810
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON5810
Availability: InStock

REF: AON5810 Alpha & Omega Semiconductor Inc.

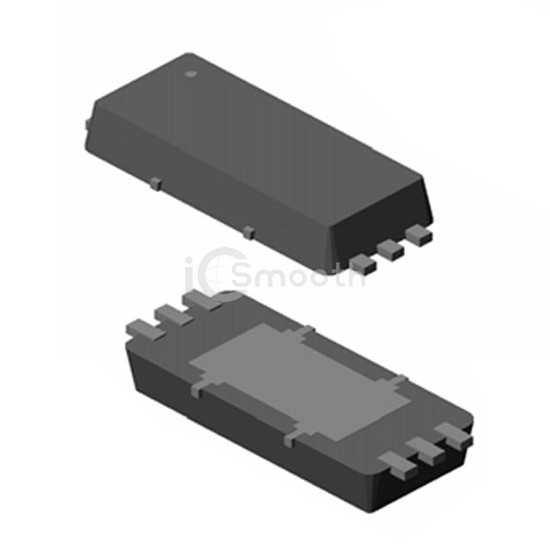

AON5810

MOSFET 2N-CH 20V 7.7A 6DFN

AON5810 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2N-CH 20V 7.7A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WFDFN Exposed Pad, power - max 1.6W.

Datasheet Request a Quote

In Stock: 5,129

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	7.7A
Rds On (Max) @ Id, Vgs	18mOhm @ 7.7A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	13.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1360pF @ 10V
Power - Max	1.6W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-WFDFN Exposed Pad
Supplier Device Package	6-DFN-EP (2x5)
